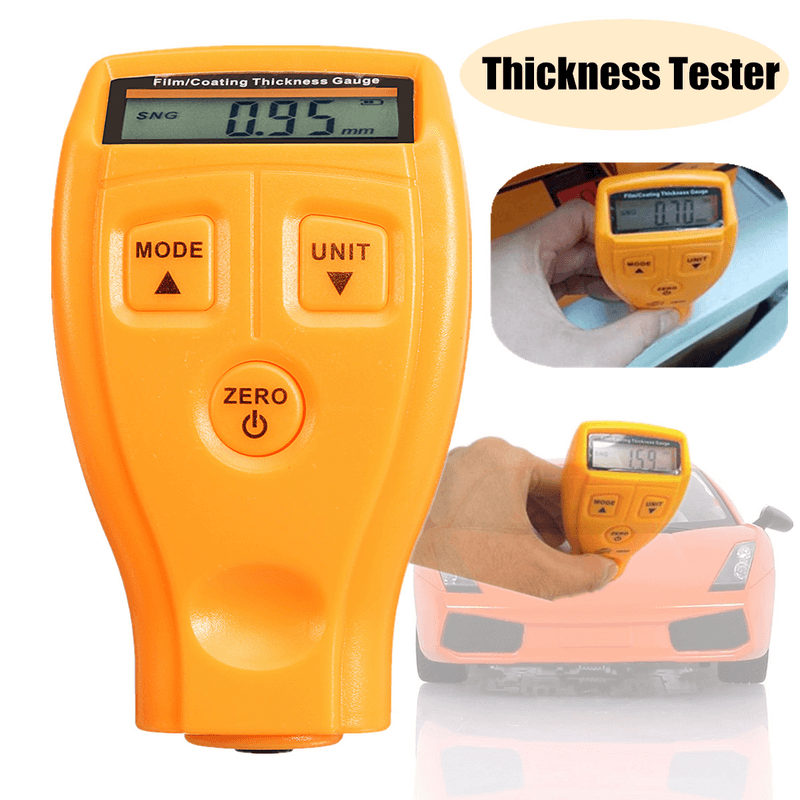

This product is a portable coating thickness gauge, Which can quickly, nondestructively, and accurately measure non-metallic coating thickness (such as paint, film, etc. ) of metal substrate. It Is widely used in detection areas like manufacturing industry, Car washing industry, metal processing industry, chemical industry, and commodity Inspection.
Portable coating thickness gauge for instant, precise and non-destructive measurement of the thickness of non-magnetic coatings (such as paint and film) on metal substrates. The perfect tool for the manufacturing company, metal machinery industry, chemical industry, commodity inspection especially in automotive trading.
Comes with 2 modes: CAR and USER Mode.
Car Mode can be used without calibration, which can measure coating thickness of 3 substrate materials- Iron, Aluminium and Zinc. Car Mode is also suitable for measuring the coating thickness of ca
User Mode requires calibration before use, which can measure coating thickness of substrate material, which conducted calibration.
Has 3 different modes of measurement: Single, continuous and difference measurement mode with metric/imperial conversion and auto power off when inactive to conserve battery life plus its lightweight and has a compact design.
Able to measure the thickness of surface coatings on metal substrates
2 modes- CAR Mode & USER Mode. CAR mode can be used WITHOUT calibration to measure the coating thickness of cars and 3 substrate materials- iron, aluminium and zinc.
3 measurement ways- Single measurement, continuous measurement and differential measurement; and 3 calibration functions- Zero-point calibration, 2-point calibration and basic calibration available.
Interchangeable Metric and imperial display unit of measurement

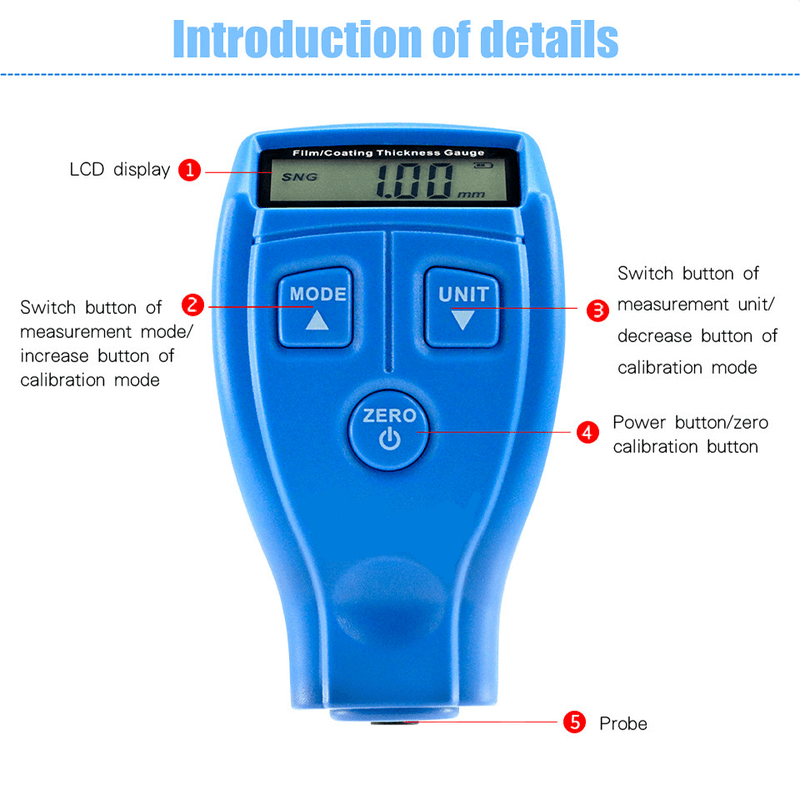

Displays measurement information on its Digital LCD screen
Feature:
1. Measure coating thickness of metal substrate surface
2. Two modes: Car/User
3. Three measurement ways: single measurement, continuous measurement, difference value measurement
4. Three calibration functions: zero calibration, two-point calibration and basic calibration
5.Metric unit and imperial unit
6.Auto power off
…
Specifications:
Name: Auto Paint Thickness Tester
Color: White/ Orange/ Blue
Measure target: non-metallic coating on the surface of the metal thickness
Measuring range: 0 ~ 1, 80 mm/0 ~ 71,0 million of coating metal on the surface of metal
Precision: ?0. 1mm
Power supply: 2 x 1, 5 V AAA battery (not included)
Diameter base minimum: 50mm
Thick base critic: 0, 5 mm
Screen resolution: 0, 01 mm/1mil
Working temperature: 0 ~ 40 ? C
Operating humidity: 10 ~ 95% RH
Size: 62 x 31 x 105 mm(2-2/5” * 1-1/5” * 4”)
Measurement range: 0~1.80mm/0-~71.0 mil
Car Mode Resolution: 0.05mm/ 2 mil
User Mode Resolution: 0.01mm/1 mil
Measurement error: ?0.1mm
Minimum diameter of substrate: 50mm
Minimum thickness of substrate: 0.5mm
Power supply: 2 x 1.5V AAA batteries
Operating temperature range: 18~30?C
Operating humidity range: 10~80%RH
Item Weight: 70.8 grams
Product Dimensions: 4.1 x 2.4 x 1 inches
Shipping Weight: 141 grams
Shipping Dimensions: 7.9 x 5.9 x 2.7 inches
Package include:
1 x Thickness Tester
